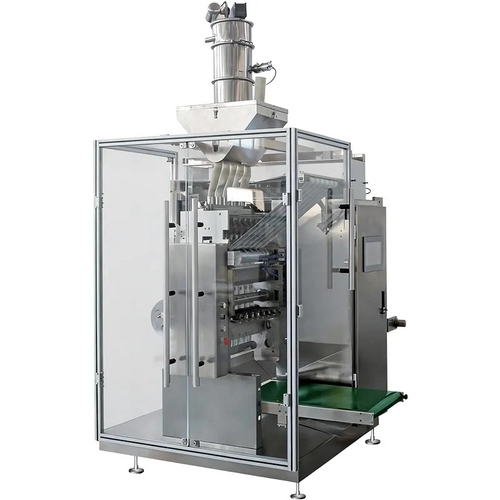

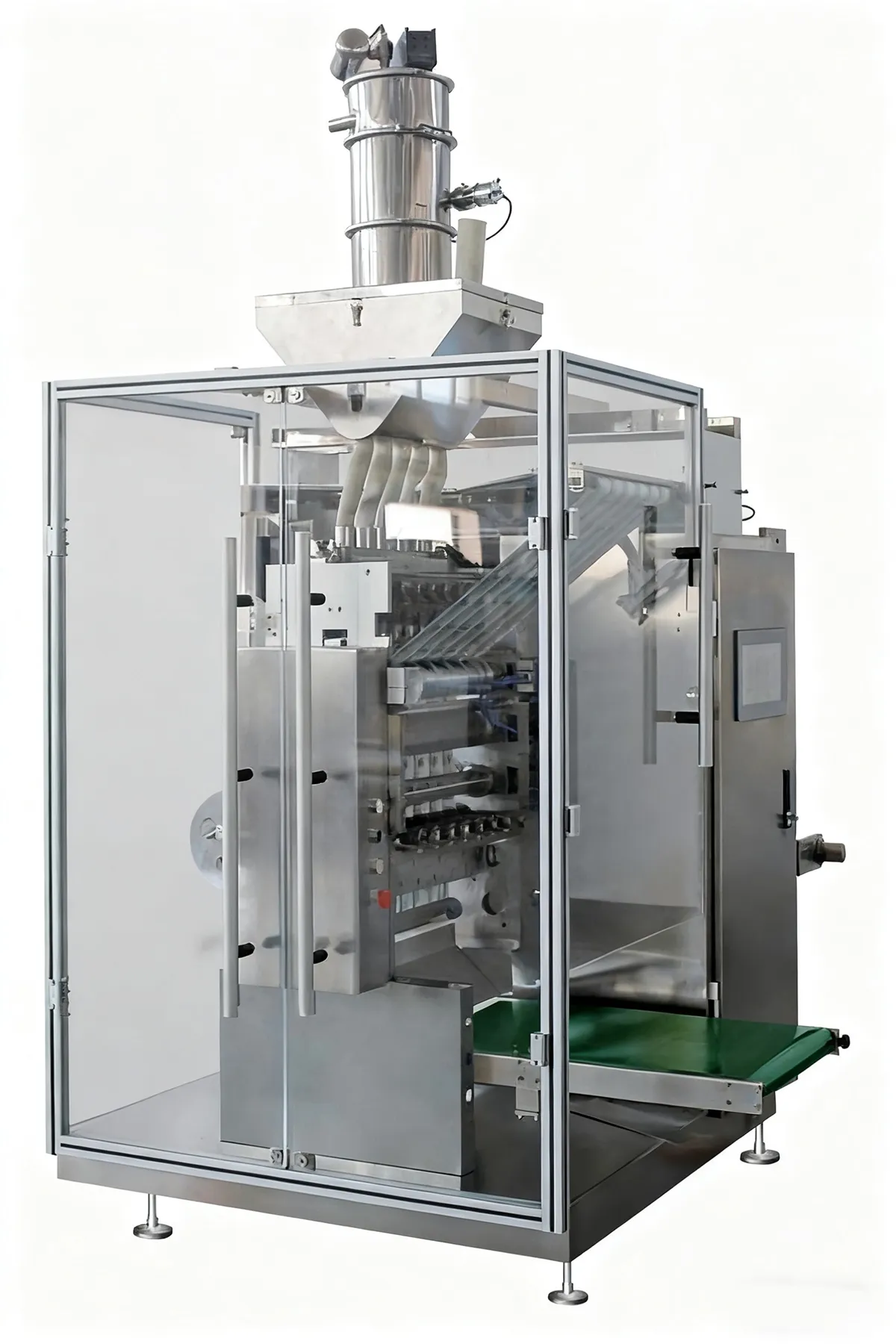

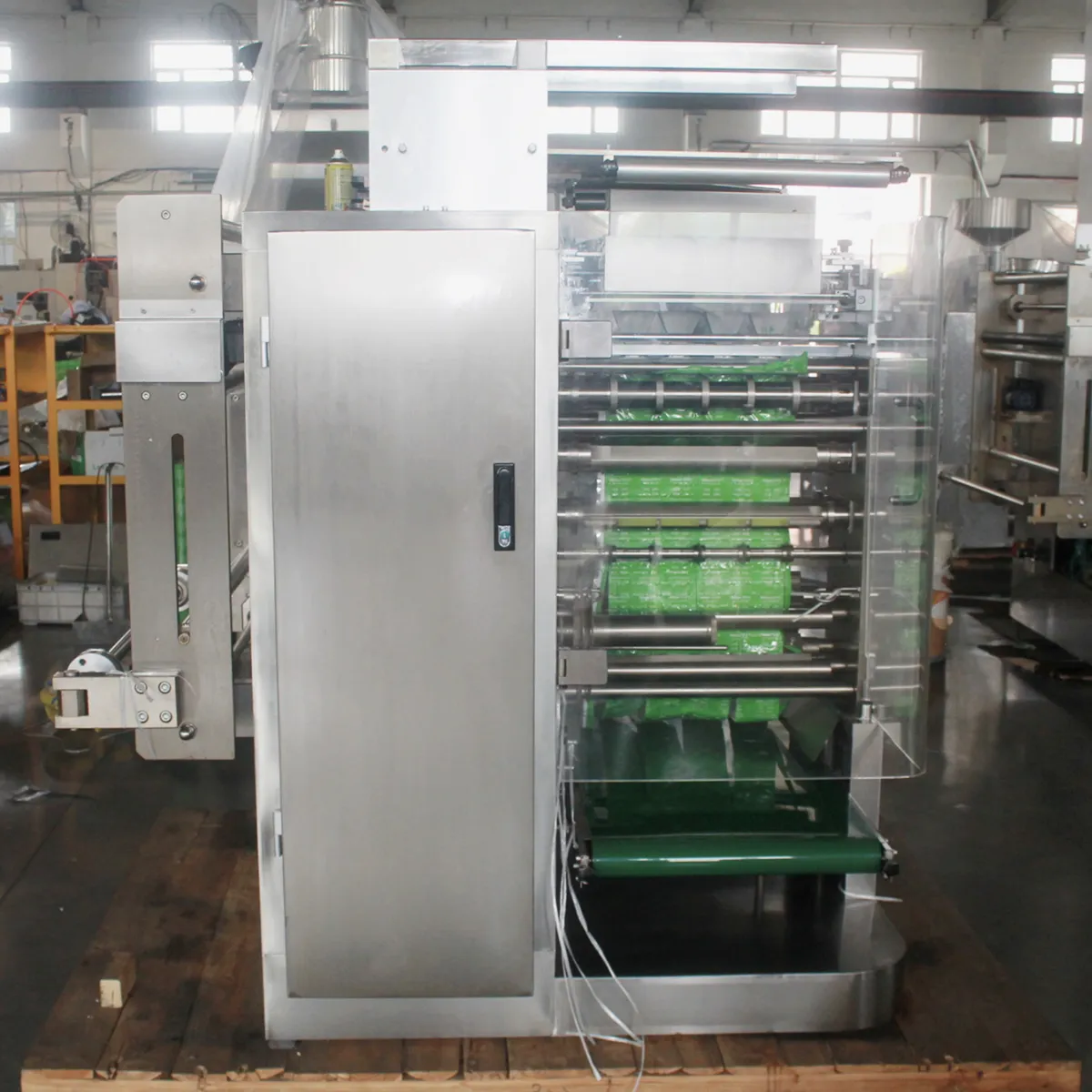

Sachet Form Fill Seal Machine, 4-Side-Seal Sachet Packaging
- Max. Packaging Speed:400 packs/min
- Dosing Range:Granules: 2–20 g | Liquids: 5–40 ml
- Max. Vertical Lanes:10 sachets
- Drive System:Dual-Servo
The sachet packaging machine adopts a PLC automatic control system with a servo-driven longitudinal sealing unit. It features automatic double-side registration for printed film and real-time tracking adjustment, while the main drive is equipped with stepless variable-frequency speed control.

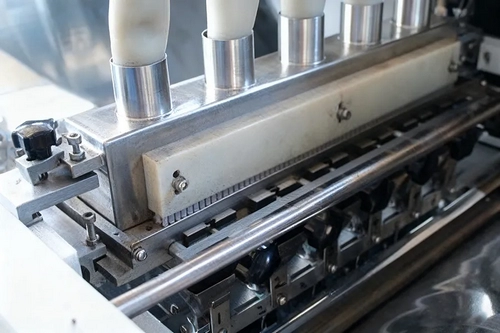

The equipment can continuously and automatically complete sachet forming, dosing, filling, sealing, slitting, batch coding, and counting. Tear notches as well as longitudinal and transverse easy-tear lines can be formed during operation. Once filling is completed, multiple sachets can be packaged simultaneously, and edge trim is automatically collected. The equipment is suitable for automatic filling and packaging of granules, powders, and similar materials.



| Film thickness | 0.05–0.1 mm |
|---|---|
| Cutting frequency | 20–60 cuts/min (adjustable) |
| Packing dose | Granules: 2–20 g/sachet Liquids and semi-liquids: 5–40 ml/sachet |
| Bag length | 50–120 mm |
| Bag width | 65–120 mm |
| Max. film width | 900 mm |
| Max. packaging speed | 400 packs/min |
| Max. number of vertical lanes | 10 sachets |
| Air consumption | 3.2 L/h |
| Installed power | 8.75 kW |
| Power supply | 380 V, 50 Hz |
| Dimensions (L×W×H) | 1500 × 1540 × 2200 mm |
| Weight | 1200 kg |
- Four-side sealing design with simultaneous multi-lane sachet packaging.
- Photoelectric mark tracking ensures automatic front-and-back print registration with accurate positioning.
- Filling, longitudinal and transverse sealing, batch coding, tear lines, and cutting are adjusted via the HMI.
- Stepless sachet length adjustment without changing forming molds.
- Large-size color touchscreen with a bilingual Chinese/English user interface for intuitive operation.

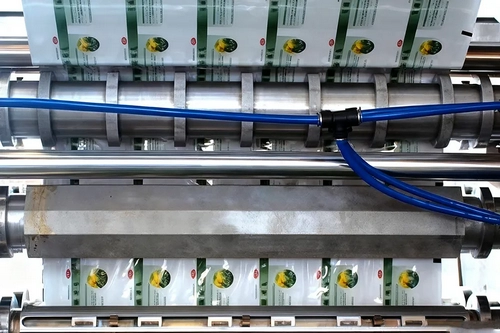

- Servo-Driven Sealing The longitudinal sealing unit uses servo drive for controlled sealing operation.
- Automatic Registration Double-side registration and real-time tracking help maintain accurate printed-film positioning.
- Up to 10 Lanes Supports multi-lane packaging with a maximum of 10 longitudinal sachet lanes.

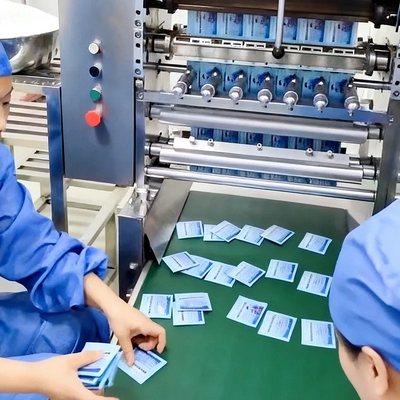

The customer’s existing packaging line could no longer meet production requirements due to high failure rates of outdated equipment. Based on Tonghua Xinhua Pharmaceutical’s industry characteristics and specific needs, Huaxin Package supplied the DXDK900 dual-servo sachet packaging machine, achieving stable filling of powder and granule products and effectively controlling dosage variation.
