Alu-PVC thermoforming and Alu-Alu cold-forming blister packaging machines for tablets, capsules, softgels and other solid dosage forms.

Blister Packaging Machines for Different Production Requirements

Huaxin offers blister packaging machines in different sizes and production capacities for tablets, capsules, softgels and other pharmaceutical products. The machine range covers different forming areas and control methods. Depending on the machine model and project configuration, the equipment can be used for thermoforming or cold-form packaging, with feeding, tooling and change parts, inspection and marking functions configured according to the product and blister specifications.

From the compact DPT130 to DPH series machines with different forming widths, customers can select suitable equipment according to product size, blister layout, packaging material and target output. For projects requiring downstream automatic cartoning, blister packaging machines can also be integrated with conveying and automatic cartoning equipment to form a continuous packaging line.

    1. Forming Process: ThermoformingMax. Forming Area: 130 × 130 mmSpeed: 20–120 cuts/minSelection Note: Compact entry-level model for lower-output applications.

    1. Forming Process: ThermoformingMax. Forming Area: 190–260 × 200 mmCutting Efficiency: 20–180 cuts/min, Speed varies by model.Selection Note: Four machine sizes for small- to medium/high-volume production.

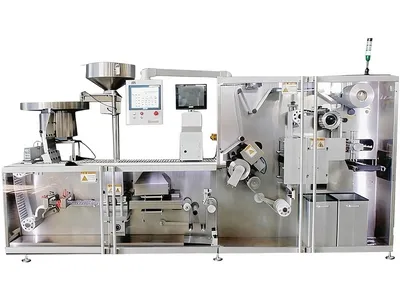

    1. Forming Process: Thermoform / Cold FormMax. Forming Area: 190 / 220 × 200 mmCutting Efficiency: Thermoform: 20–200 cuts/min;
      Cold Form: 20–160 cuts/min
      Selection Note: For lower-capacity projects requiring both forming processes.

    1. Forming Process: Thermoform / Cold FormMax. Forming Area: 250 × 200 mmCutting Efficiency: Thermoform: 20–200 cuts/min;
      Cold Form: 20–160 cuts/min
      Selection Note: For medium-batch continuous production requiring a 250 mm forming width.

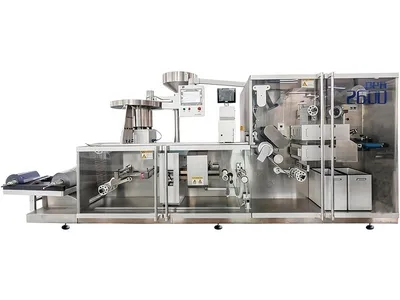

    1. Forming Process: Thermoform / Cold FormMax. Forming Area: 220 × 260 mmCutting Efficiency: Thermoform: 20–200 cuts/min;
      Cold Form: 20–160 cuts/min
      Drive Configuration: Triple-Servo / Full-Servo

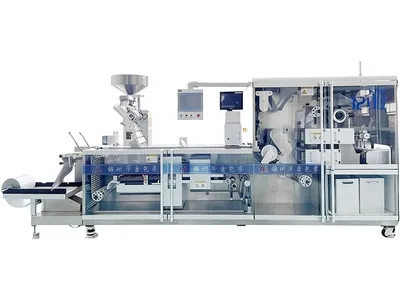

    1. Forming Process: Thermoform / Cold FormMax. Forming Area: 220 × 320 mmCutting Efficiency: Thermoform: 20–200 cuts/min;
      Cold Form: 20–160 cuts/min
      Drive Configuration: Triple-Servo / Full-Servo

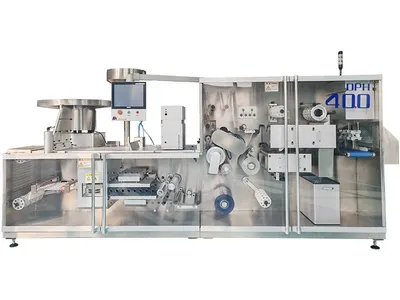

    1. Forming Process: Thermoform / Cold FormMax. Forming Area: 200 × 430 mmCutting Efficiency: Thermoform: 20–200 cuts/min;
      Cold Form: 20–160 cuts/min
      Drive Configuration: Triple-Servo / Full-Servo

    1. Tooling & Change Parts
      Tooling & Change PartsBlister Tooling

      Tooling and mechanical parts for new equipment, packaging format changes and replacement requirements.

Not Sure Which Packaging Machine Fits Your Product?

Need Automatic Cartoning After Blister Packaging?

For projects that need to reduce intermediate manual transfer and improve continuity between blister packaging and cartoning, Huaxin can configure the blister packaging machine in line with conveying, collating, inspection and automatic cartoning equipment according to the product, blister specifications, actual production capacity and carton packaging requirements.

Blister packaging and automatic cartoning production line
