Pharmaceutical deblister machines for recovery of tablets and capsules from rejected Alu-PVC blister packs
Deblistering Machines
Typical Products:
Tablets | Coated Pills | Capsules
Application:

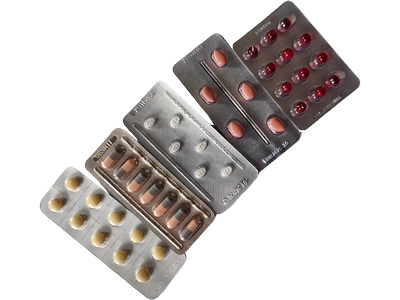

Recovery from Rejected Alu-PVC Blister Packs
Key Highlights:

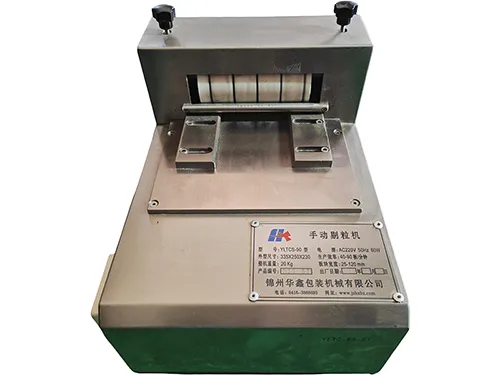

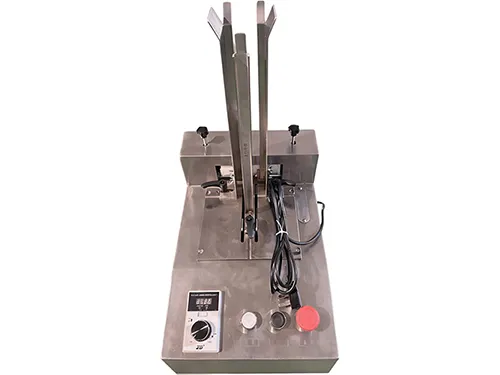

- Models:YLTCS-90 / ZDT-120
- Operation:Semi-Automatic / Automatic
- Blister Sheet Width:25–120 mm
- Power Supply:220 V, 50 Hz
The Alu-PVC deblistering machine is a supporting device for Alu-PVC blister packaging machines. With its compact design and high-quality construction, it can remove defective tablets, coated pills, or capsules from any size of blister sheet. The equipment is easy to operate, simple to adjust, and highly efficient, while ensuring no contamination or damage to the tablets.
Technical Specifications
| Specification | ||
|---|---|---|
| Type | Semi-Automatic | Automatic |
| Production efficiency | 40–90 sheets/min | ≤60 sheets/min |
| Power supply | 220 V, 50 Hz | 220 V, 50 Hz |
| Installed power | 60 kW | 60 kW |
| Dimensions (L*W*H) | 335 × 250 × 230 mm | 418 × 280 × 232 mm |
| Weight | 20 kg | 22 kg |
| Blister sheet width | 25–120 mm | 25–120 mm |
Key Features
- Compact Design Compact structure for use as supporting equipment in blister packaging production.
- Easy Operation & Adjustment Simple operation and convenient adjustment for different blister sheets.
- Efficient Product Recovery Designed to remove defective tablets, coated pills and capsules from blister sheets efficiently.
- Product Protection Supports recovery while avoiding contamination or damage to the tablets.
