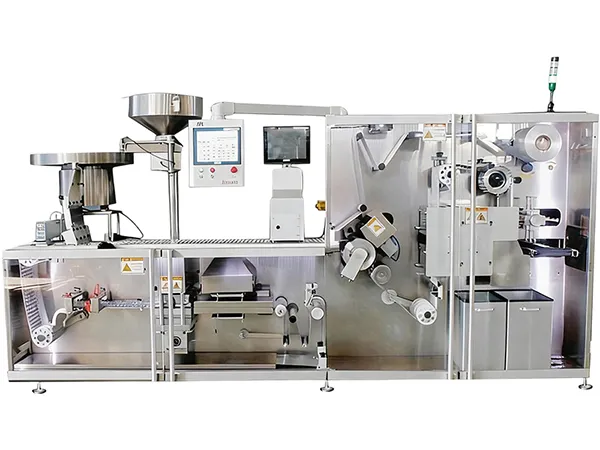

Blister Packaging Machine, DPH190D/220D
- Max. Forming Area:190 / 220 × 200 mm
- Max. Forming Depth:Alu-PVC: 18 mm | Alu-Alu: 12 mm
- Cutting Efficiency:Alu-PVC: 20–200 cuts/min | Alu-Alu: 20–160 cuts/min
- Drive System:Triple-Servo
Alu-PVC & Alu-Alu blister packaging machine is driven by servo motors, with a cutting frequency of 20 to 200 cuts/min for Alu-PVC and 20 to 160 cuts/min for Alu-Alu. It is suitable for packaging solid dosage forms of various shapes and sizes, including tablets, capsules, soft gel capsules, and irregular shaped products. It supports multiple materials, including Alu-PVC, PVDC, Alu-Alu, and PET. The machine body is fully covered with stainless steel and fully enclosed, ensuring packaging compliance and product safety.
The equipment meets GMP requirements and represents a stable and economical packaging solution. Visual inspection uses internationally recognized brands, providing high detection accuracy and effectively preventing missing or empty units.
| Specification | ||
|---|---|---|
| Max. forming area | 190 × 200 mm | 220 × 200 mm |
| PVC film | 190 × 0.15–0.45 mm | 220 × 0.15–0.45 mm |
| PTP film | 190 × 0.02–0.03 mm | 220 × 0.02–0.03 mm |
| Cutting efficiency | Alu-PVC: 20–200 cuts/min Alu-Alu: 20–160 cuts/min | Alu-PVC: 20–200 cuts/min Alu-Alu: 20–160 cuts/min |
| Forming method | Alu-PVC: Pressure molding Alu-Alu: Stamping | Alu-PVC: Pressure molding Alu-Alu: Stamping |
| Max. forming depth | Alu-PVC: 18 mm Alu-Alu: 12 mm | Alu-PVC: 18 mm Alu-Alu: 12 mm |
| Power supply | 380 V, 50 Hz |
|---|---|
| Total power | 12.75 kW |
| Dimensions (L*W*H) | 4470 × 1000 × 1700 mm |
| Weight | 2500 kg |
| Sealing method | Roller sealing |
| Noise level | 75 dB(A) |
| Compressed air consumption | 1.1 m³/h (20 L/min) |
| Compressed air pressure | 0.5–0.7 MPa |
| Cooling water consumption | 0.19 m³/h (3.2 L/min) |
DPH190D is suitable for R&D and small batch production, while DPH220D is suitable for small to medium batch production. Models can be selected according to required output, product size, and material specifications.




- Triple-Servo Drive
The machine is driven by servo motors for stable operation across both forming processes.
- Thermoform & Cold Form
Supports Alu-PVC pressure molding and Alu-Alu stamping on the same machine platform.
- Multiple Packaging Materials
Supports Alu-PVC, PVDC, Alu-Alu and PET for different pharmaceutical packaging requirements.
- GMP-Oriented Enclosed Structure
Fully enclosed stainless-steel construction supports packaging compliance and product safety.
- Visual Inspection
Visual inspection uses internationally recognized brands to help prevent missing or empty units.
- Wide Product Range
Suitable for tablets, capsules, soft gel capsules and irregular shaped solid dosage forms.

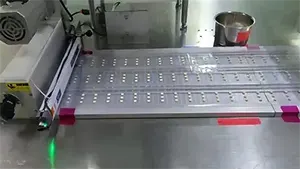

A new triple-servo machine was added to the production line to meet capacity requirements. The DPH220D integrated with the existing line, significantly improving production efficiency.

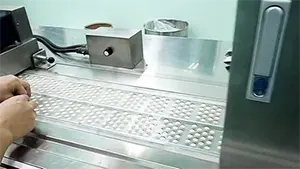

For small batch R&D production, the DPH190D allowed rapid parameter adjustment via HMI, reducing mold change time and supporting multiple product types.
Blister Tooling & Change Parts
Tooling and change parts can be configured according to product dimensions, blister layout and packaging requirements. For replacement or additional tooling, provide your product and existing blister format for evaluation.
